Alitherm 400 Window
A versatile range of aluminium windows
The Pioneering Alitherm 400 Window

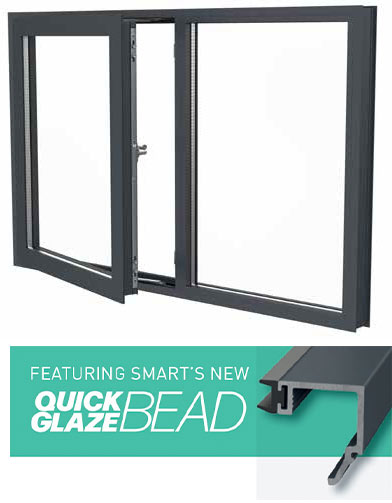

The Alitherm 400 window is the first thermally broken aluminium system to feature Smart’s pioneering coextruded glazing gasket. This means the beads are supplied with the glazing gasket post-extruded into the profile.
This enables the Quick-Glaze beads to be simply tapped in on site, significantly reducing fabrication and installation time.
Available with a square profile, the slim lines of Alitherm 400 provide excellent weather and thermal performance, as well as the security assurance provided by PAS24 accreditation.
While the flush, flat face option is suitable for off-set, face-mounted espagnolette locks, the square design features a eurogroove, to enable in-line espagnolette locking mechanisms to be used.
| Alitherm 400 Windows | |||
|---|---|---|---|
| Application | Domestic / Commercial | ||
| Finish | Single / dual colour, marine quality polyester powder coated | ||
| Profile | Square | ||
| Security | Multi-point locking espag, Inline locking handle as standard | ||
| Frame depth | 70mm | ||
| U Value | 1.4 w/m²k | ||
| WER | A | ||
| Air Tested | Class 3, 600Pa | ||
| Water Tested | Class 7a, 300Pa | ||
| Wind Tested | Class AE, 2400Pa | ||
| British Standards | KM 81580 / PAS 24:2012 / KM81543 / BS4873 | ||
| Add ons | 20mm, 42mm | ||
| Bead | Internal Sash / External Fixed Lights | ||
| Cills | 85mm, 150mm, 190mm, 225mm, 300mm | ||
| Glazing | DG 28mm / TG 32mm | ||
| Astragal Bar | 25mm / 41mm flat bar | ||

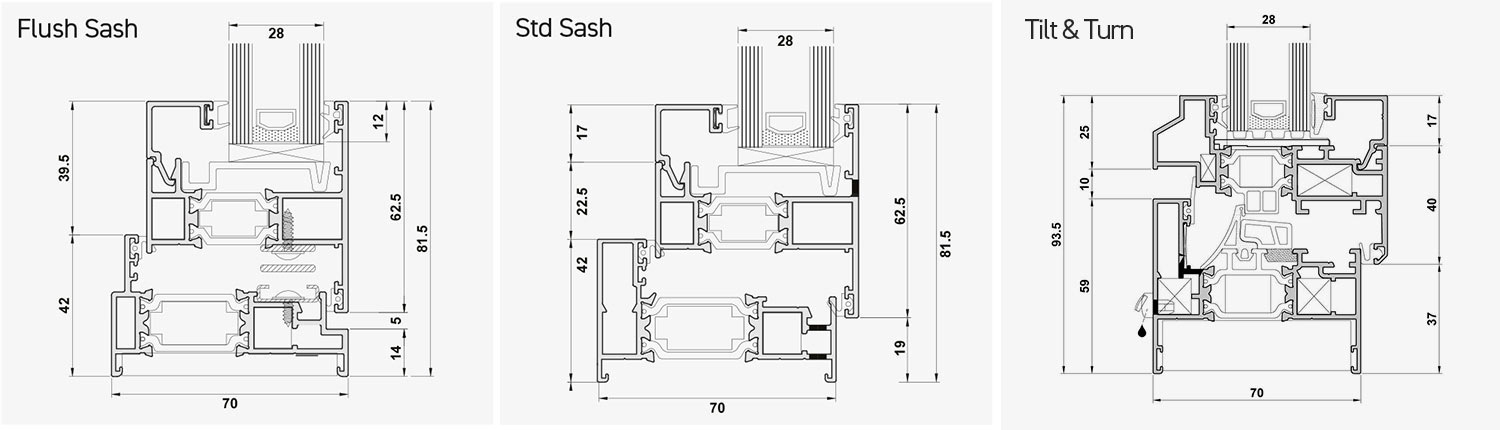

| Window Sizes | Flush | Std | Tilt & Turn |
| SH Max o/a width | 865mm | 865mm | 1200mm |
| SH Max o/a height | 1400mm | 1400mm | 2100mm |
| TH Max o/a width | 1400mm | 1400mm | N/A |
| TH Max o/a height | 1500mm | 1500mm | N/A | Max weight | 40kg TH / 40kg SH | 40kg TH / 40kg SH | 90Kg |
