Alitherm 300 Window
A versatile range of aluminium windows
This versatile range of profiles can provide many solutions for residential use. It can create traditional casement windows inspired by the elegance and styling of timber products, or contemporary style windows designed for modern homes or offices.
Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.
*Standard sash unless specified (externally beaded)
| Alitherm 300 Windows | |
|---|---|
| Application | Domestic |
| Finish | Single / dual colour, marine quality polyester powder coated |

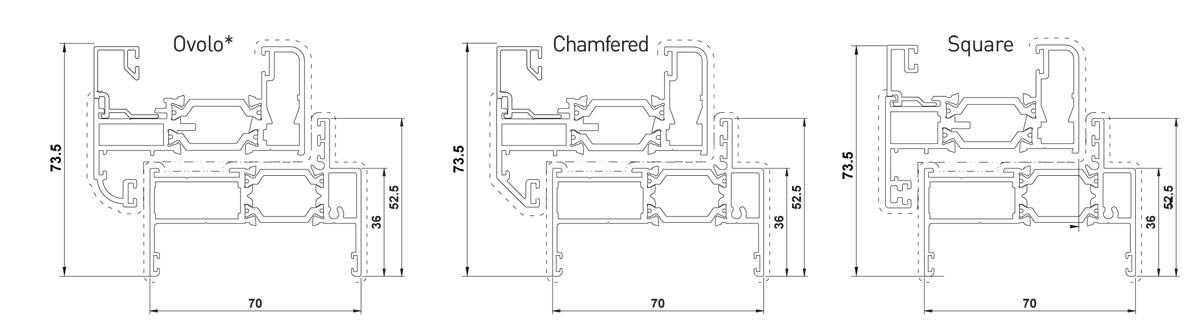

| Profile Sash | Ovolo / Chamfered / Square |
| Security | Multi-point locking espag, Inline locking handle as standard |
| Frame depth | 70mm |
| Max weight | 40kg TH / 28kg SH |
| U Value | 1.2 -1.6 w/m²k |
| SH Max o/a width | 600mm |
| SH Max o/a height | 1400mm |
| TH Max o/a width | 1400mm |
| TH Max o/a height | 1400mm |
| WER | A - C |
| Air Tested | Class 3, 600Pa |
| Water Tested | Class 7a, 300Pa |
| Wind Tested | Class AE, 2400Pa |
| British Standards | KM 81580 / PAS 24:2012 / KM81543 / BS4873 |
| Add ons | 20mm, 42mm |
| Bead | Internal / External (Ovolo not available with internal) |
| Cills | 85mm, 150mm, 190mm, 225mm, 300mm |
| Glazing | DG 28mm / TG 32mm |
